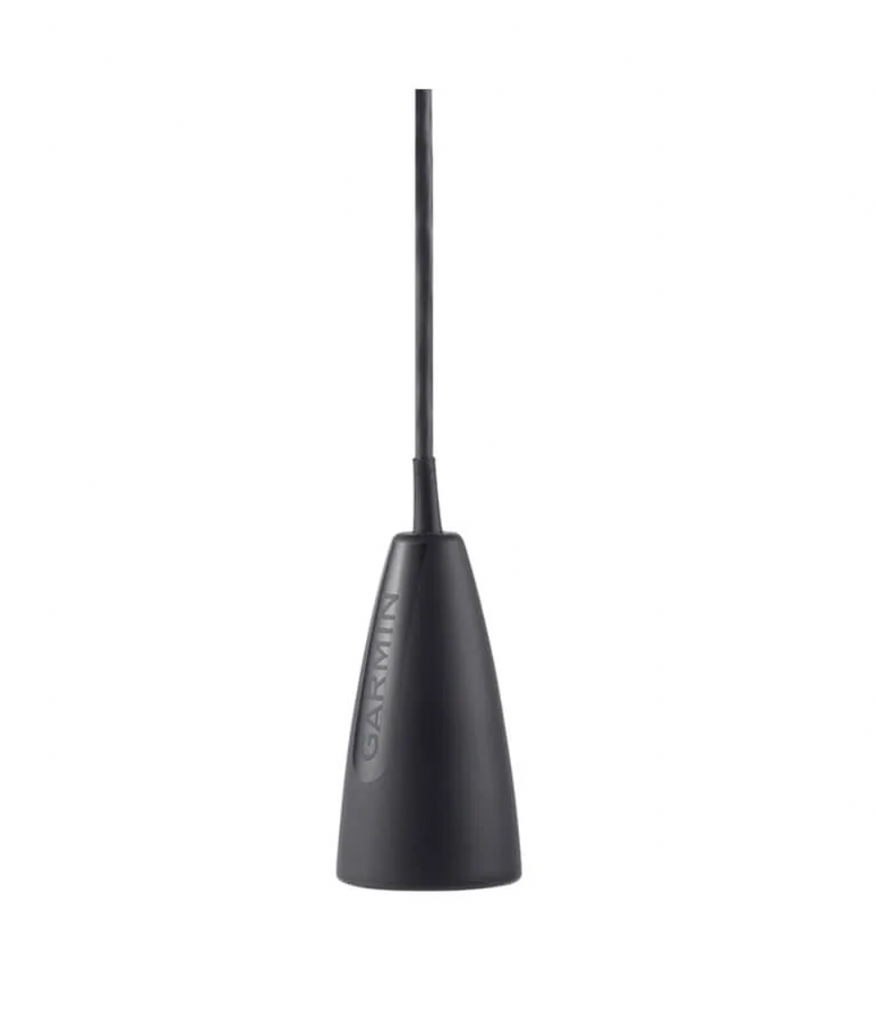

Get crystal-clear images of fish from your spot on the ice with the Dual Beam IF ice fishing transducer1. It offers remarkable target separation, an operating frequency of 77/200 kHZ and a beamwidth of 15 or 45 degrees — making it easier to see more. It features a silicone-coated cable that remains flexible in harsh winter conditions. The kit includes a 4-pin transducer, foam float and grommet.
| Transducer frequency | 77/200 kHz |
|---|---|
| Transducer power | 500 W |
| Transducer beamwidth | 45°/15° |
| Transducer cable length | 8 ft. |
| Transducer depth/speed/temperature | Depth |
| Transducer number of pins | 4-pin |
| Transducer supported deadrise/transom angles | N/A |
Transducer Support |
|
| Transducer frequency | 77/200 kHz |
|---|---|
010-13069-00
